Define the antenna and platform requirements
Custom military antenna development should begin with a controlled requirement baseline, not a preferred antenna shape. Record operating bands, polarization, impedance reference, allowable envelope, mounting interfaces, cable or connector constraints, platform materials, environmental exposures, and the evidence required for acceptance. Separate mandatory limits from design preferences and identify which values are measured, calculated, or still to be confirmed.
The baseline should also define the mission-facing behavior without claiming a particular program outcome. State the intended coverage, orientation, duty conditions, interoperability needs, service access, and any coexistence concern in testable language. A buyer can then compare design proposals against the same boundary.
Translate the platform into RF and mechanical constraints
Create one configuration view that places RF and mechanical constraints together. Nearby conductors, radomes, brackets, cable routing, grounding, fasteners, and thermal paths can change the installed boundary. Record the physical reference plane and the antenna-to-platform relationship before selecting a topology.
| Input | Engineering record | Decision it supports |
|---|---|---|
| RF operation | bands, polarization, impedance, power condition | architecture and feed choice |
| Platform interface | envelope, mounting, ground, radome, cable route | packaging and integration |
| Environment | temperature, vibration, moisture, dust, service state | tailoring and fixture plan |
| Acceptance | measurement method, sample, limit, owner | verification and release |
Do not turn an environmental standard into a promise that a design is qualified. The DLA ASSIST description of MIL-STD-810 emphasizes tailoring to the materiel and its service life. Use that principle to define relevant exposures and evidence for the actual platform.
Select an architecture that can be verified
Compare candidate architectures by how they satisfy the frozen constraints. Consider aperture or element arrangement, feed transition, polarization control, ground dependence, radome interaction, and serviceability. Record rejected alternatives and the reason for rejection so a later change does not reopen a settled question without evidence.
The architecture review should produce a controlled drawing, interface assumptions, a simulation or calculation plan, and a list of questions for the prototype build.
Prototype with traceable revisions
Prototype work is useful only when the article can be identified. Mark the revision, material, connector, cable, fixture, and assembly state. Capture deviations from the drawing before measuring. If the prototype uses a temporary bracket or a substitute component, keep that fact beside the result rather than treating it as production intent.

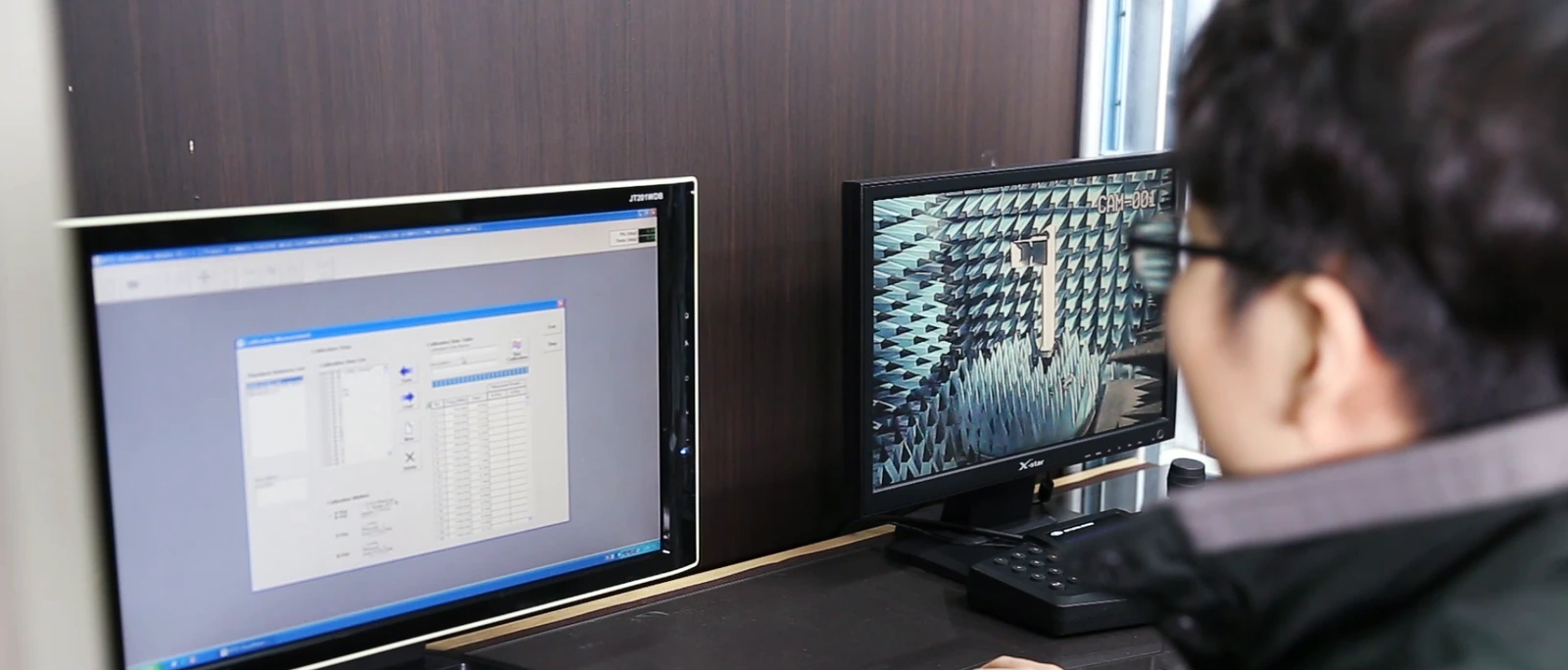

Plan a sequence that starts with feed and continuity checks, continues through relevant RF measurements, and then evaluates the installed interaction. IEEE 149-2021 provides recommended practice for antenna measurement planning, but the project still needs its own reference plane, calibration, environment, and acceptance interpretation.
Verify the production-intent configuration
Verification should compare the released requirement baseline with a defined test article. Use the intended platform boundary where practical, and state what is excluded when it is not. Record expected behavior, measured observations, uncertainty or repeatability notes, and disposition of deviations. Environmental exposure should be selected through a tailoring decision, not copied from a generic checklist.
Run the RF baseline before exposure and repeat the agreed measurements afterward. Keep the antenna revision, fixture, cable, instruments, and data-reduction method traceable so the comparison describes the same configuration.
Release drawings, BOM, and change control
The production-intent handoff should contain the controlled drawing, material and finish assumptions, connector and cable definition, BOM, inspection points, test configuration, acceptance criteria, and open-risk owner. Define which changes trigger another RF, mechanical, or environmental review. Keep prototype lessons in the design record so a manufacturing team can see why a tolerance or interface was selected.
For a development review with MAC technologies Inc., provide the antenna requirements, platform drawing, prototype configuration, environmental conditions, and expected verification deliverables.
RF technology insights offers related context, while RF antenna and component resources and the applications hub help organize the next technical review.
Keep the handoff decision-ready
The final review should show what is frozen, what is verified, and what still requires an owner. A concise gate table can list requirement, evidence, result, deviation, disposition, and next action. That format is more useful than a broad statement that development is complete.
If the platform, enclosure, cable, or operating band changes, review the affected requirements before reusing an earlier result. Retain the previous configuration and identify the new sample and revision.
For a complex assembly, split the gate review into requirement closure, architecture closure, prototype readiness, verification readiness, and production-intent release. Each gate should name the input revision, the evidence available, the unresolved risk, and the person responsible for the next decision. This prevents a prototype result from being mistaken for a released drawing and makes the handoff useful to engineering, procurement, and manufacturing at the same time.
