Choose an RFID reader antenna manufacturer by how well its products and engineering support fit the installed application. Define the operating band, reader interface, cable, polarization, mounting geometry, read zone, environment, and acceptance tests before comparing suppliers. This gives every candidate the same requirement and makes the comparison useful beyond a headline gain figure.

That distinction matters because a reader antenna is part of a coupled RF system. The enclosure, mounting surface, cable loss, connector, nearby metal, reader power, tag orientation, and tagged material can all change the field delivered to the application. Supplier evaluation should therefore be based on project-specific requirements, comparable evidence, and validation under the intended installation conditions.

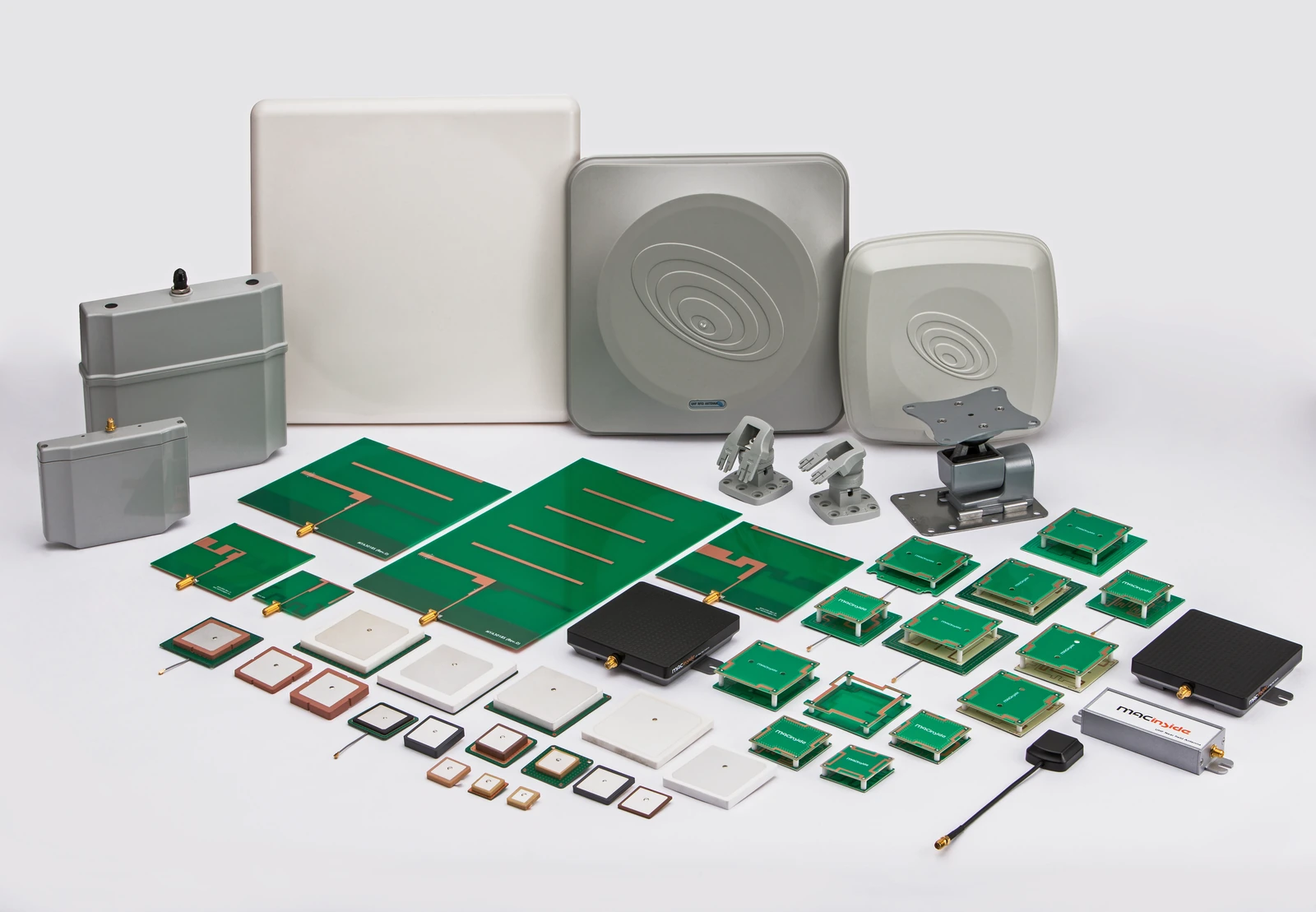

RFID reader antenna product portfolio from MAC technologies Inc. — Company RFID antenna portfolio with ceramic, PCB, fixed and near-field formats. Select the format around the reader and installation requirements.

What should the antenna requirement brief contain?

Start with the workflow and geometry. Record where tags move or remain stationary, the permitted antenna locations, minimum and maximum distance, expected tag orientations, nearby materials, and zones where reads must not occur. Then add the electrical and mechanical interfaces.

regional frequency band and reader port impedance

connector, cable type, maximum cable length, and reference plane

required polarization, coverage shape, and mounting orientation

available volume, fasteners, grounding, sealing, and temperature range

measurable read-zone criteria using representative tagged items

Requirement Area	Buyer Must Define	Evidence to Request	Validation Point
Band	Deployment country, operating band, and reader configuration	Supported frequency range and the conditions attached to it	Confirm the production-intent antenna and reader configuration in the target market
Reader-to-antenna interface	Reader manufacturer or integrator defines port impedance, connector, cable, maximum length, and reference plane	Antenna supplier provides interface drawings, cable data, and antenna measurement setup	Integrator verifies the assembled reader, cable, and antenna from the agreed reference plane
Polarization and read zone	Tag orientations, desired coverage, exclusion zones, and mounting angle	Polarization information and pattern data with frequency and coordinates	Exercise representative tags throughout desired and unwanted zones
Mechanical integration	Envelope, fasteners, grounding, nearby materials, and keep-out areas	Revision-controlled drawings and installation limits	Repeat RF checks in the production-intent enclosure and mounting state
Environment	Temperature, moisture, ingress, cleaning, vibration, or other justified exposures	Applicable material data and attributable test records	Recheck relevant RF and mechanical properties after tailored exposure
Change control	Characteristics that may affect tuning, pattern, or installation	Controlled bill of materials, revision history, and notification process	Define which material, cable, enclosure, or process changes trigger revalidation

For passive UHF systems, the GS1 EPC UHF Gen2 air-interface specification defines communication between interrogators and tags in the 860 MHz to 930 MHz range. It does not select an antenna or guarantee performance in a particular installation, so the procurement specification still needs regional and system-level limits. The reader manufacturer or integrator defines protocol operation and system limits; the antenna supplier provides the component specifications needed to evaluate that configuration.

Compare evidence at the same reference conditions

Ask each candidate to identify whether values are minimum, typical, simulated, or measured. A gain number is not comparable unless frequency, polarization, coordinate system, cable treatment, fixture, and uncertainty are known. Likewise, return loss or VSWR should identify the measurement reference plane and the installed configuration.

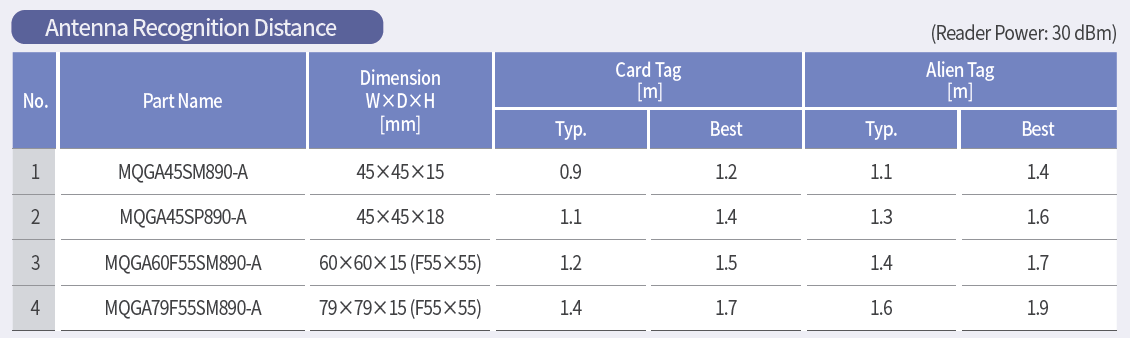

QGA RFID antenna catalogue read-distance table with test conditions — QGA catalogue read-distance entries identify the antenna model, tag and test conditions. Compare these conditions before applying a catalogue value to a project.

IEEE 149-2021 describes recommended methods for measuring antenna properties, including radiation patterns. Ask the supplier which method, fixture, calibration, and configuration were used for the data being reviewed.

Review integration and change control

Identify who controls the antenna drawing, cable assembly, connector selection, mounting bracket, tuning state, and acceptance record. Request revision-controlled dimensions and define which changes require revalidation. A material substitution, cable change, altered mounting gap, or enclosure coating can affect RF behavior.

Rear view of an RFID antenna housing showing mounting studs and an RF connector — The rear view shows mounting studs and an RF connector. Confirm the selected model and its interface drawing before defining the installation.

The reader manufacturer or integrator should lead installed-system prototype testing with production-intent parts and record reader configuration, tagged items, orientation, distance, surroundings, and pass/fail criteria. The antenna supplier provides antenna specifications, gain, radiation-pattern, polarization, frequency-response, and interface data for that review. If the finished product is radio equipment placed on the European market, the European Commission overview of the Radio Equipment Directive explains the essential requirements for safety, electromagnetic compatibility, and efficient spectrum use. The manufacturer placing that finished radio equipment on the market remains responsible for its applicable conformity assessment and technical documentation.

The European Commission RED Guide distinguishes a passive antenna sold as a standalone commercial unit from an active antenna containing electronics that interact with the RF signal. The former is outside the RED scope described in that guidance; active antennas are covered. This is not an exemption from every applicable rule. Assess the actual product, supplied configuration, intended use, and market before assigning compliance tasks.

Build a decision record buyers can audit

Compare candidates on requirement coverage, evidence quality, unresolved integration risks, test readiness, and ownership of corrective action. Record each exception and the test or document needed to resolve it before supplier selection.

Evaluation Area	Evidence Available	Open Risk	Buyer Decision
Requirement coverage	Identify the controlled document and revision reviewed	List every exception, ambiguity, or unsupported value	Accept, reject, or request a clarified response
RF evidence	Record whether data are simulated, measured, typical, or guaranteed	Note missing conditions, fixtures, uncertainty, or installed-state evidence	Define the comparison or verification still required
Integration readiness	Reference antenna supplier drawings, interface data, and production-intent antenna samples	Record enclosure, cable, mounting, or tagged-item dependencies	Approve the next prototype stage only when dependencies are controlled
Change control	Reference the proposed material, process, and notification controls	Identify substitutions that could alter RF or mechanical behavior	State which changes require notification, approval, and retest
Corrective-action ownership	Name the party responsible for each open item	Record schedule and acceptance impact without assuming closure	Assign an owner, evidence deliverable, and decision date

Before issuing an RFQ, confirm that the buyer has:

defined the deployment region, reader interface, tagged items, read zone, and exclusion zones;

issued controlled mechanical and environmental constraints;

stated which values require measured rather than simulated evidence;

defined the installed acceptance setup, sample configuration, and pass/fail rules;

identified design-file, tooling, change-notification, and revalidation responsibilities; and

separated verified evidence from supplier statements that remain pending review.
