RFID antennas for handheld and desktop readers face different installation and user-interaction conditions. A handheld reader moves with the operator and must work across grip positions and approach angles. A desktop reader has a more stable position, but the desk, enclosure, cable, and way items are presented still shape the read zone.

Choose around the intended interaction

Describe what the operator does before choosing an antenna. For a handheld product, specify how it is held, where the tag is approached, whether the reader moves during a transaction, and which nearby items must remain unread. For a desktop station, identify the tray or presentation surface, tag position, item material, dwell time, and nearby stock.

A short presentation area may call for a different field distribution from a reader intended to scan at a greater distance. The terms handheld and desktop do not identify a frequency band, polarization, or near-field/far-field architecture on their own.

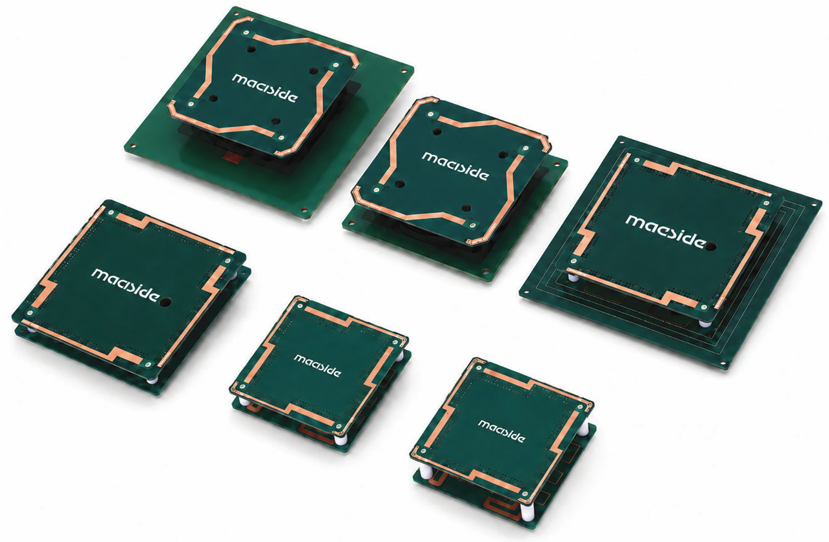

QWA PCB reader antenna family in six physical sizes — The QWA PCB antenna family offers several physical sizes for reader integration. Select the assembly around the available enclosure volume, feed and required band.

Integration topic	Handheld reader	Desktop reader
Physical boundary	Grip, battery, display, internal PCB, enclosure	Desk, tray, housing, mounting surface
Orientation	Changes with the operator and approach	Usually more controlled but dependent on item placement
Feed and cable	Limited space and loads during handling	Cable exit, strain relief, desk routing
Unwanted reads	Nearby items outside the intended approach	Stock or adjacent stations outside the presentation area
Acceptance trial	Representative grips, users, and approach angles	Representative desk states, loads, and item positions

Put the antenna into the real enclosure

PCB ground, battery position, shields, display, fasteners, and enclosure walls can change the electrical environment. Reserve the antenna volume and feed path before the mechanical design is frozen. Compare candidate PCB or ceramic constructions within that same envelope.

Measure the feed condition on the intended PCB, then repeat with the enclosure and surrounding components in place. Use the final connector and cable where practical. If temporary components are necessary, record them so their results are not treated as production acceptance data.

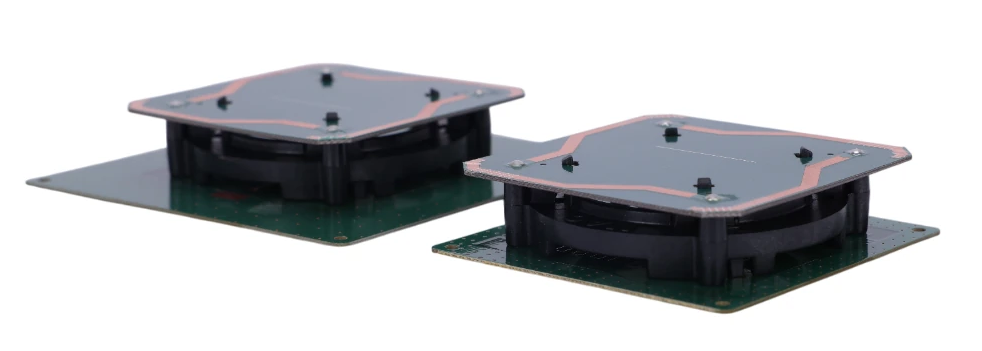

Side views of PCB RFID antenna assemblies and support structures — A side view of PCB antenna assemblies shows the stacked height and supports that must fit beside the reader’s internal components.

Test RF performance and handling together

For a handheld trial, define grip positions and tag approach directions. Include the battery and display state used in normal operation and keep reader settings fixed when comparing antenna locations. Record read behavior separately from handling observations such as cable stress, connector access, and an awkward approach angle.

For a desktop trial, include the intended surface and representative nearby objects. Check the desired presentation area and the rejected area around it. If the station has a metal tray or housing, include it before the final tuning decision.

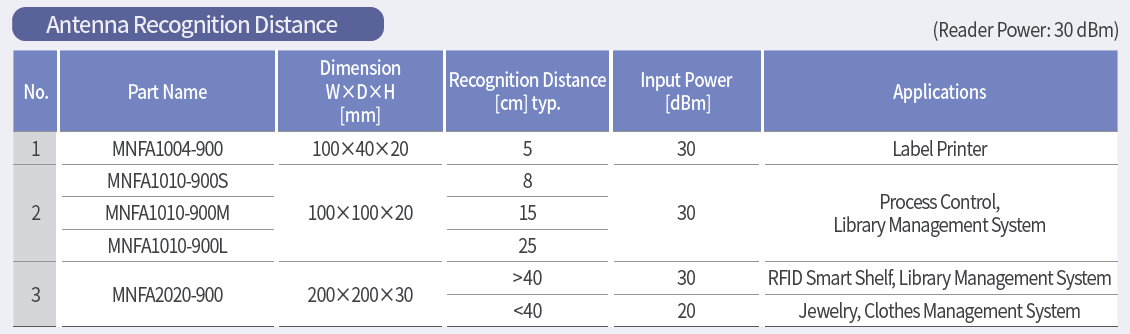

Near-field RFID antenna catalogue model and application table — The near-field catalogue associates antenna models with application examples such as label printers and library systems. Use the table as a selection starting point, then define the desktop station’s actual presentation and exclusion zones.

Keep a repeatable acceptance record

Identify the reader firmware, antenna and enclosure revisions, cable, tags, material, orientation, dwell time, and pass/fail rule. Repeat the relevant trial after changing the antenna location, battery, housing, cable route, or presentation tray.

The GS1 UHF Gen2 protocol defines the reader-tag communication context, while TIPP supports repeatable tagged-item testing. Product usability and the final reader installation need their own acceptance criteria.

Send MAC technologies Inc. the reader configuration, enclosure drawing, available antenna volume, feed arrangement, representative tags, and intended user workflow to begin a form-factor review.
